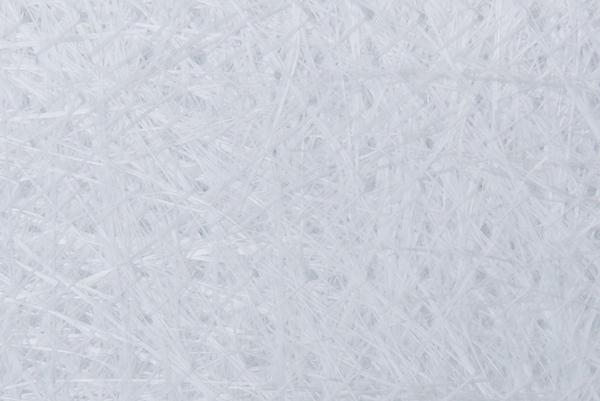

It is made of Synthetic mat or woven roving and Chopped strand mat bonded with stitching polyester. It is ideal for the RTM and RTM light Process.
Products Property：
No any Binder, good compatible with Multi-Resin
simplify the molding process
improve producing efficiency and decrease cost
Typical Type:
Product No. | Overall Density （g/m2） | 1st Chop Density （g/m2） | Core Density （g/m2） | 2nd Chop Density （g/m2） | Polyester Yarn Density （g/m2） |
EKM300P180M300 | 800.85 | 300 | 180 | 300 | 20.65 |
EKM300P250M300 | 870.65 | 300 | 250 | 300 | 20.65 |
EKM450P180M450 | 1100.65 | 450 | 180 | 450 | 20.65 |
EKM450P250M450 | 1170.65 | 450 | 250 | 450 | 20.65 |
EKM600P180M600 | 1400.65 | 600 | 180 | 600 | 20.65 |
EKM600P250M600 | 1470.65 | 600 | 250 | 600 | 20.65 |
EKM750P250M750 | 1770.65 | 750 | 250 | 750 | 20.65 |
Remarks:
Standard width: 125cm/50“ Max.width 280cm
Standard Roll weight: 36kg
Packaging:
Each roll is wound on paper tube (3”Dia.) with plastic film and packed in individual cardboard box.
9 and 6 cartons per Pallet.
The above information is for reference only, in view of product variety and application conditions diversity, all of above information should be as specific user properly adjust the situation.
