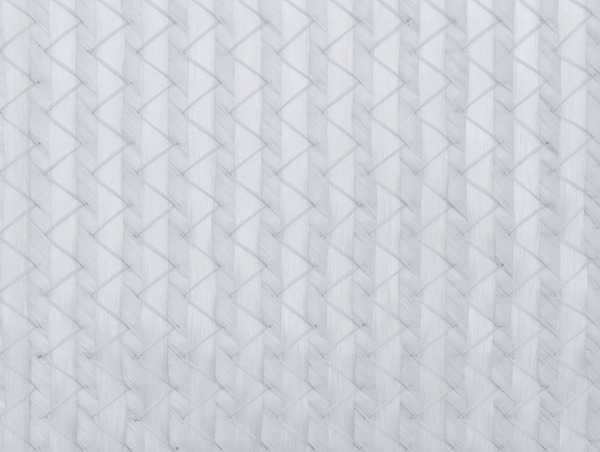

It is a stitch-bonded composite reinforcement combining continuous roving oriented in the 0° +45°,-45° or +45°,90°,-45°directions into a single fabric. It can be with mat or without mat It is ideal for applications such as wind blades, marine panel, snowboards, truck and trailer panels….
Products Property：
No any Binder, good compatible with Multi-Resin
Optimal mechanical performance
Easy workability and low cost
Typical Type:
| Product No. | Overall Density（g/m2） | +0°Roving Density（g/m2） | +45°Roving Density（g/m2） | 90°Roving Density（g/m2） | -45°Roving Density（g/m2） | ChopDensity （g/m2） | Polyester Yarn Density（g/m2） |
| EKTXL450 | 453.2 | 144.7 | 150.3 | 1.91 | 150.3 | / | 6 |
| EKTXL600 | 613.8 | 217.1 | 194.4 | 1.91 | 194.4 | / | 6 |
| EKTXL750 | 754 | 216 | 265 | 1.91 | 265 |
| 6 |
| EKTXL800 | 811.8 | 394 | 200.4 | 11 | 200.4 | / | 6 |
| EKTXL1200 | 1176.1 | 567 | 300.6 | 1.91 | 300.6 | / | 6 |
| EKTXT450 | 456 | 0 | 68 | 314 | 68 | / | 6 |
| EKTXTV450/45 | 501 | 0 | 100 | 250 | 100 | V45 | 6 |
| EKTXT480 | 481.3 | 0 | 158.1 | 159.1 | 158.1 | / | 6 |
| EKTXT750 | 751.5 | 0 | 202 | 341.5 | 202 | / | 6 |
| EKTXT800 | 810.3 | 1.91 | 200.4 | 401.6 | 200.4 | / | 6 |
| EKTXT1050 | 1055.9 | 1.91 | 217 | 614 | 217 | / | 6 |
| EKTXT1200A | 1214.6 | 1.91 | 400.8 | 405.1 | 400.8 | / | 6 |
| EKTXT1200 | 1358.8 | 1.91 | 300.6 | 640 | 300.6 | / | 6 |
Remarks:
Standard width: 127cm, . Min.width 5cm
Standard Roll weight: 50 or 55kg
Packaging:
Each roll is wound on paper tube (3”Dia.) with plastic film and packed in individual cardboard box.
16 or 12 cartons per Pallet.
The above information is for reference only, in view of product variety and application conditions diversity, all of above information should be as specific user properly adjust the situation.
