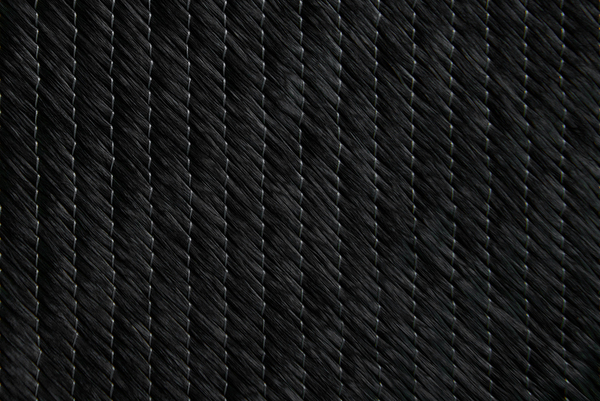

It is a stitch-bonded composite reinforcement combining carbon tow oriented in the 0°/+45°/90°/-45° any two,three,four direction into a single fabric. It is ideal for applications such as marine,wind power,truck and train panels。
Typical Type:
| Product No. | Overall Density （g/m2） | 0°Carbon Density （g/m2） | +45°Carbon Density （g/m2） | 90°Carbon Density （g/m2） | -45°Carbon Density （g/m2） | Polyester Yarn Density （g/m2） | Carbon Fiber |
| CKBX100 | 106 | / | 50 | / | 50 | 6 | 12K |
| CKBX150 | 156 | / | 75 | / | 75 | 6 | 12K |
| CKBX200 | 206 | / | 100 | / | 100 | 6 | 12K/24K/50K |
| CKBX300 | 306 | / | 150 | / | 150 | 6 | 12K/24K/50K |
| CKBX400 | 406 | / | 200 | / | 200 | 6 | 12K/24K/50K |
| CKBX600 | 606 | / | 300 | / | 300 | 6 | 12K/24K/50K |
| CKLT300 | 306 | 150 | / | 150 | / | 6 | 12K/24K/50K |
| CKLT400 | 406 | 200 | / | 200 | / | 6 | 12K/24K/50K |
| CKLT600 | 606 | 300 | / | 300 | / | 6 | 12K/24K/50K |
| CKLT800 | 806 | 400 | / | 400 | / | 6 | 24K/50K |
| CKLT1000 | 1006 | 500 | / | 500 | / | 6 | 24K/50K |
| CKTXL600 | 606 | 200 | 200 | / | 200 | 6 | 12K/24K/50K |
| CKTXT600 | 606 | / | 200 | 200 | 200 | 6 | 12K/24K |
| CKQX400 | 406 | 100 | 100 | 100 | 100 | 6 | 12K/24K |
| CKQX600 | 606 | 150 | 150 | 150 | 150 | 6 | 12K/24K/50K |
| CKQX800 | 806 | 200 | 200 | 200 | 200 | 6 | 12K/24K/50K |
Remarks：
1.Standard width: 127cm Standard roll length：50m
2.12K/24K different strength and modulus upon request
3.Fiber with stability treatment is available
4.±30°，±60°angle is available
The above information is for reference only, in view of product variety and application conditions diversity, all of above information should be as specific user properly adjust the situation.
