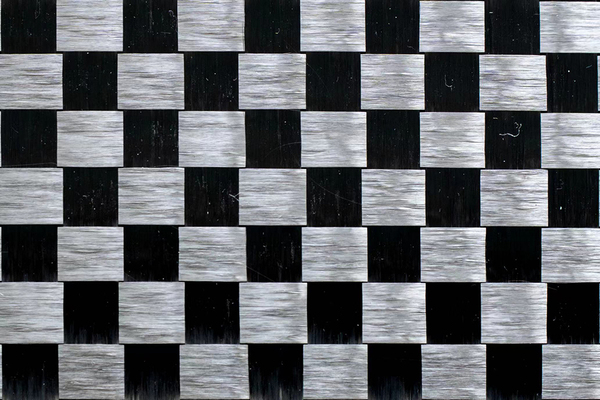

Spread carbon fiber first,then woven very light fabric.It have super tensile strength due to very small curve and excellent appearance.It mainly used for automotive,sports and leisure.
Typical Type：
| Produce No | Weight (g/m2) | Tow width (mm) | FiberDensity(end/cm) | Input Tow | Thickness （mm） | Weave |
| Warp | Weft | Warp | Weft |
| CWP80S | 80 | 20 | 40 | 40 | 12K | 12K | 0.08 | Plain |
| CWP88S | 88 | 18 | 44 | 44 | 12K | 12K | 0.085
| Plain |
| CWP100S | 100 | 16 | 50 | 50 | 12K | 12K | 0.09
| Plain |
| CWP133S | 133 | 12 | 66.5 | 66.5 | 12K | 12K | 0.12
| Plain |
| CWP160S | 160 | 10 | 80 | 80 | 12K | 12K | 0.15
| Plain |
| CWP200S | 200 | 8 | 100 | 100 | 12K | 12K | 0.18
| Plain |
Remarks：
1.Standard width：100cm、127cm、150cm
2.12K different strength and modulus upon reques.
3.Fabric less than 100gsm has stability treatment.
The above information is for reference only, in view of product variety and application conditions diversity, all of above information should be as specific user properly adjust the situation.
